一概述

產品用途

我公司研制的便攜式內孔自動焊，是專為現場施工而設計，體積小，重量輕，焊接質量好。對使用環境和空間要求不高，便于攜帶，廣泛應用于大型設備，工程機械的銷孔，軸承孔等圓孔的補焊修復。是工礦企業，工程現場維修的必備工具。

技術特點

可與任意接口的氣保焊機配套使用

采用數字化控制系統，控制**，操作簡單

可實現螺旋焊、直線焊、擺動焊、端面焊

定長停止功能，真正做到無人值守

產品參數

工作電壓：交流220v/50hz

*大功率：100W

整機重量：11KG

整機尺寸：L400*W210*H290

主軸轉速：0.1-5.0r/min

焊接范圍：Φ55-250mm

軸向行程：245mm

焊絲直徑：建議使用Φ1.0

安全事項

請**人員使用和保養。

請勿接觸帶電部位，會引起致命電擊或灼傷。

請**人員按規定可靠接地。

安裝、檢修和保養必須在切斷電源后進行。

弧光、飛濺會灼傷眼睛和皮膚，請做好防護。

焊接煙塵和氣體對身體有害，請注意防塵、通風。

焊接有可能引起火災、爆炸，請遠離易燃、易爆物品。

I. Overview

Product Usage

The portable inner hole automatic welding developed by our company is specially designed for on-site construction. It is small in size, light in weight and good in welding quality. It is not required for use environment and space, and is easy to carry. It is widely used in repair of large equipment, pin holes of engineering machinery, bearing holes and other round holes. It is an indispensable tool for industrial and mining enterprises and on-site maintenance.

Technical Characteristics

?Can be used with gas shielded welder of any interface

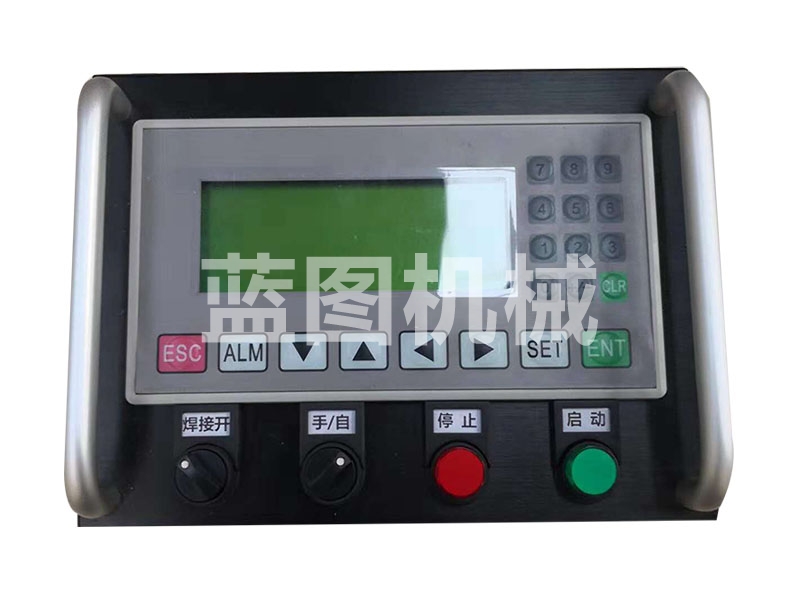

?Digital control system for precise control and easy operation

?Can realize spiral welding, straight welding, swing welding, face welding

?Set the duration stop function, truly unattended

Product Parameters

Working voltage: AC 220V / 50Hz

Maximum power: 100W

Machine weight: 11kg

Machine size: L 400 * W 210 * H 290

Spindle speed: 0.1-5.0r/min

Welding range: Φ55-250mm

Axial travel: 245mm

Wire diameter: Φ1.0 is recommended

Environmental Conditions

?Ambient temperature: -10 °C ~ +40 °C.

?Storage temperature: -25 °C ~ +55 °C.

?Relative humidity: 20°C≤85%

40°C≤ 50%

?It should be placed in a dry and ventilated place to prevent direct sunlight and rain.

?Apply oil to the lead screw and guide rail during long-term storage.

Safety Precautions

?Please use and maintain the professional.

?Do not touch live parts, which can cause fatal electric shock or burns.

?Ask the professional to be reliably grounded as required.

?Installation, service and maintenance must be carried out after the power has been switched off.

?Arcs and splashes can burn your eyes and skin. Protect yourself.

?Welding fumes and gases are harmful to the body. Please pay attention to dust and ventilation.

?Welding may cause fire or explosion. Keep away from flammable and explosive materials.
